ZTDCQG Dock leveler

ZTDCQG Dock leveler

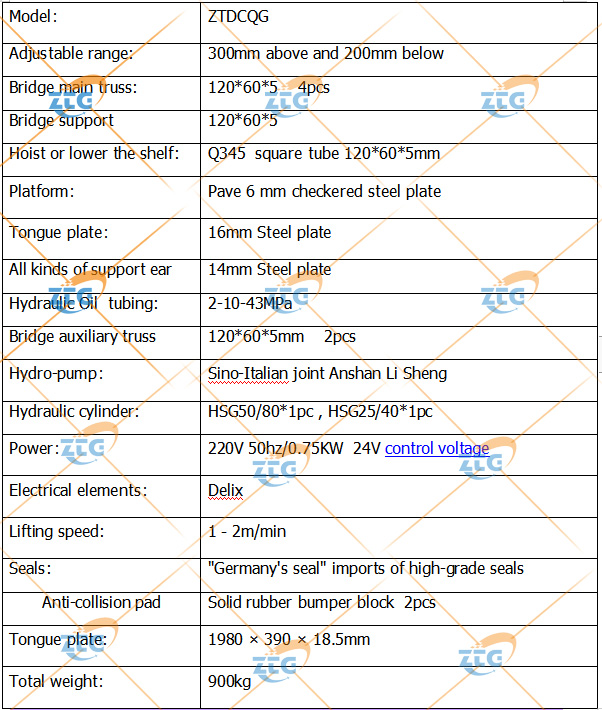

Model: ZTDCQG Adjustable range: 300mm above and 200mm below
Bridge main truss: 120*60*5 4pcs Bridge support 120*60*5
Hoist or lower the shelf: Q345 square tube 120*60*5mm
Platform: Pave 6 mm checkered steel plate
Tongue plate: 16mm Steel plate All kinds of support ear
14mm Steel plate Hydraulic Oil tubing: 2-10-43MPaBridge auxiliary truss
120*60*5mm 2pcs
Hydro-pump: Sino-Italian joint Anshan Li Sheng
Hydraulic cylinder: HSG50/80*1pc HSG25/40*1pc
Power: 220V 50hz/0.75KW 24V control voltage
Electrical elements: DelixLifting speed: 1-2m/min
Seals: "Germany's seal" imports of high-grade seals
Anti-collision pad Solid rubber bumper block 2pcs
Tongue plate: 1980 × 390 × 18.5mm Total weight: 900kg

PRODUCT DETAIL





Introduction
Hydraulic dock leveler is the special auxiliary equipment used for loading and unloading of
goods. Its height can be adjusted with the different heights of lorries. Some transport vehicles
like forks can directly move into the wagon box with goods in using it, and only need one person
operating. The equipment can help enterprise reduce so much labor force ,improve work efficienc
y and speed up the rate of goods flow, so as to achieve greater economic results. It is an
indispensabledevice for enterprises’ running with high efficiency.
