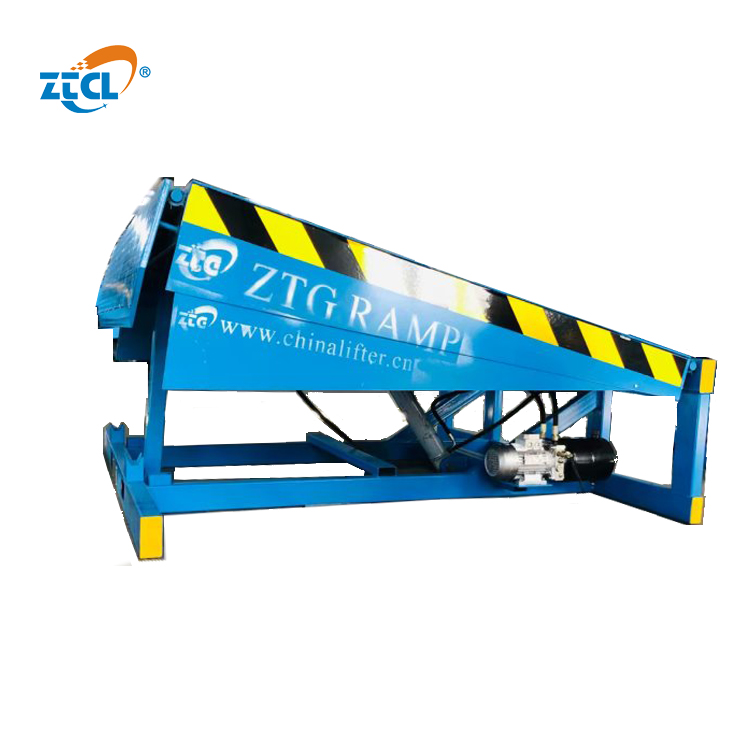

ZTDCQG Dock leveler

ZTDCQG-20T 2000*2500mm

ZTDCQG-20T Dock Leveler size:2000*2500mm ,self-height 600mm , up +400 ,down -300

Main material
1. Main beam: 6 main beams of 200 * 100 * 5 rectangular tube (Jigang)
2. Underframe: 120 * 60 * 5 rectangular tube
3. Panel: 8mm checkered plate, overlapping tongue plate: 20mm steel plate, size 2m * 400mm
4. Large plate oil cylinder: 80 * 1 (Hebei Hengyu)
5. Tongue oil cylinder: 40 * 1 (Hebei Hengyu)
6. Hydraulic pump station 1.5KW, special hydraulic pump station for boarding bridge (Anshan Lisheng)
7. High pressure oil pipe: 2-10-43 double steel wire mesh, Hebei Hengshui Rubber General Factory
8. Seals: imported seals are used to ensure excellent sealing performance of the hydraulic system.
9. Color: Blue (electrostatic spraying)

PRODUCT DETAIL

ZTDCQG-20T Dock Leveler size:2000*2500mm ,self-height 600mm  , up +400 ,down -300

Main material
1. Main beam: 6 main beams of 200 * 100 * 5 rectangular tube (Jigang)
2. Underframe: 120 * 60 * 5 rectangular tube
3. Panel: 8mm checkered plate, overlapping tongue plate: 20mm steel plate, size 2m * 400mm
4. Large plate oil cylinder: 80 * 1 (Hebei Hengyu)
5. Tongue oil cylinder: 40 * 1 (Hebei Hengyu)
6. Hydraulic pump station 1.5KW, special hydraulic pump station for boarding bridge (Anshan Lisheng)
7. High pressure oil pipe: 2-10-43 double steel wire mesh, Hebei Hengshui Rubber General Factory
8. Seals: imported seals are used to ensure excellent sealing performance of the hydraulic system.
9. Color: Blue (electrostatic spraying)
