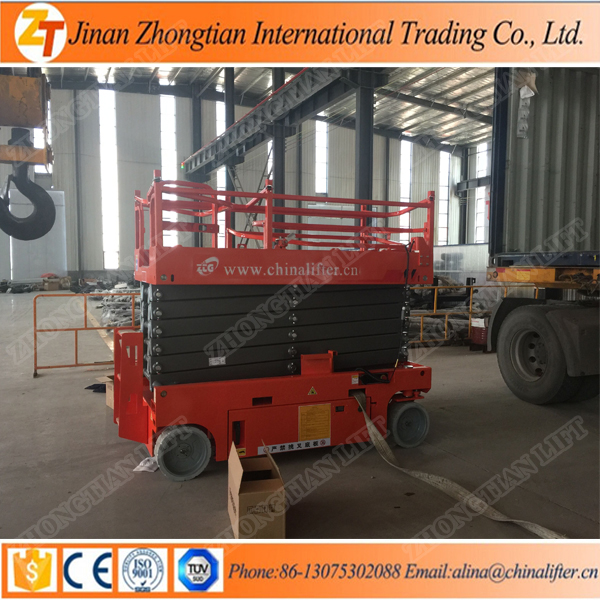

    • ZTGTJZ Self-propelled scissor lift

    Home > PRODUCTS > Electric Scissor lift > ZTGTJZ Self-propelled scissor lift

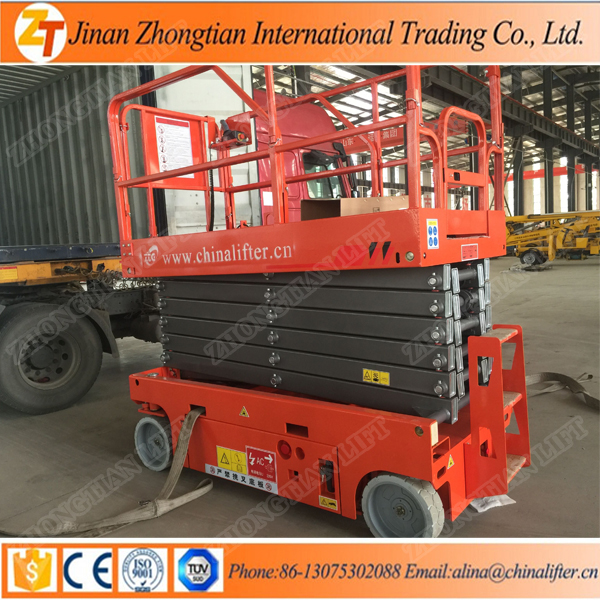

    ZTGTJZ1214M Self-propelled

    Model (self-hydraulic drive) ZTGTJZ1214M
    Max Working height 13.80m
    Maximum platform height 11.80m
    Safe working load 320kg
    Extended platform safe working load 113kg
    Work platform size (length×width×height) 2.26×1.13×1.1m
    Overall dimensions
    The guardrail is not folded
    (length×width×height)
    2.475×1.15×2.542m

    Overall dimensions
    Folding guardrail
    (length×width×height)
    2.475×1.15×2.094m

    Table extension size 0.9m
    Minimum ground clearance 0.1/0.02m
    Wheelba<x>se 1.89m
    Turning radius
    (inner wheel/outer wheel)
    0/2.2m
    Lifting/driving motor 24V/4.5kw
    Lifting speed 3-5m/min
    Machine travel speed (closed state) 3.5km/h
    Machine speed (lifting state) 0.8km/h
    Battery 4×12V/300ah
    charger 24V/30A
    Maximum climbing ability 25%
    Maximum allowable angle of work 1.5°/3°
    Tires Φ381×127mm
    Total Weight 2960kg

    PRODUCT DETAIL







    Model (self-hydraulic drive)ZTGTJZ1214M
    Max Working height13.80m
    Maximum platform height11.80m
    Safe working load320kg
    Extended platform safe working load113kg
    Work platform size (length×width×height)2.26×1.13×1.1m
    Overall dimensions
    The guardrail is not folded
    (length×width×height)

    2.475×1.15×2.542m
    Overall dimensions
    Folding guardrail
    (length×width×height)

    2.475×1.15×2.094m
    Table extension size0.9m
    Minimum ground clearance0.1/0.02m
    Wheelbase1.89m
    Turning radius
    (inner wheel/outer wheel)
    0/2.2m
    Lifting/driving motor24V/4.5kw
    Lifting speed3-5m/min
    Machine travel speed (closed state)3.5km/h
    Machine speed (lifting state)0.8km/h
    Battery4×12V/300ah
    charger24V/30A
    Maximum climbing ability25%
    Maximum allowable angle of work1.5&deg;/3&deg;
    Tires&Phi;381×127mm
    Total Weight2960kg



    Material:


    safety fence35mm * 35mm square tube

    mesaAnti-slip pattern board 3mm

    supportRectangular tube: 125mm * 75mm * 5mm material Q345 manganese steel

    UnderframeSteel plate welding
    Link pinOil-free bearings
    Hydraulic cylinder2 pcs Hebei Hengyu
    Power batteryTorch
    Hydraulic oilGreat Wall N46 # anti-wear
    Electronic control systemLecan
    Hydraulic drive systemDali
    Main valveEaton
    Motor pumpGuo Rui
    BatteryTorch
    chargerSamet
    TiresBonded solid tires grey
    Surface treatmentSpray processing



    Main configuration list
    *Proportional control
    *Automatic braking system
    *Buzzer
    *Extended platform
    *Automatic pothole protection system
    *Emergency descent system
    *Horn
    *Charging protection system
    *Platform self-locking door
    *emergency stop button
    *work schedule
    *Full travel
    *Tubing explosion-proof system
    *Safe maintenance support rod
    *Non-marking tires
    *Fault diagnosis system
    *Standard forklift hole
    *4×2 drive
    *Tilt protection system
    *Folding fence
