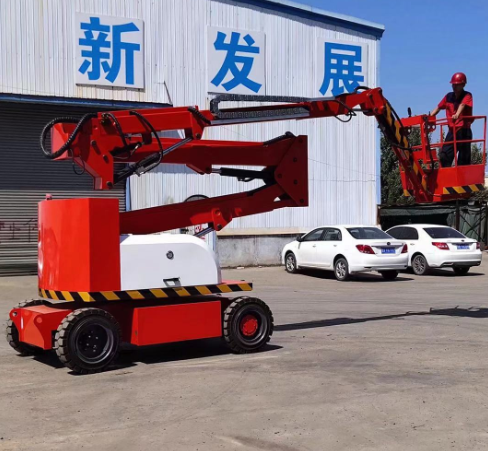

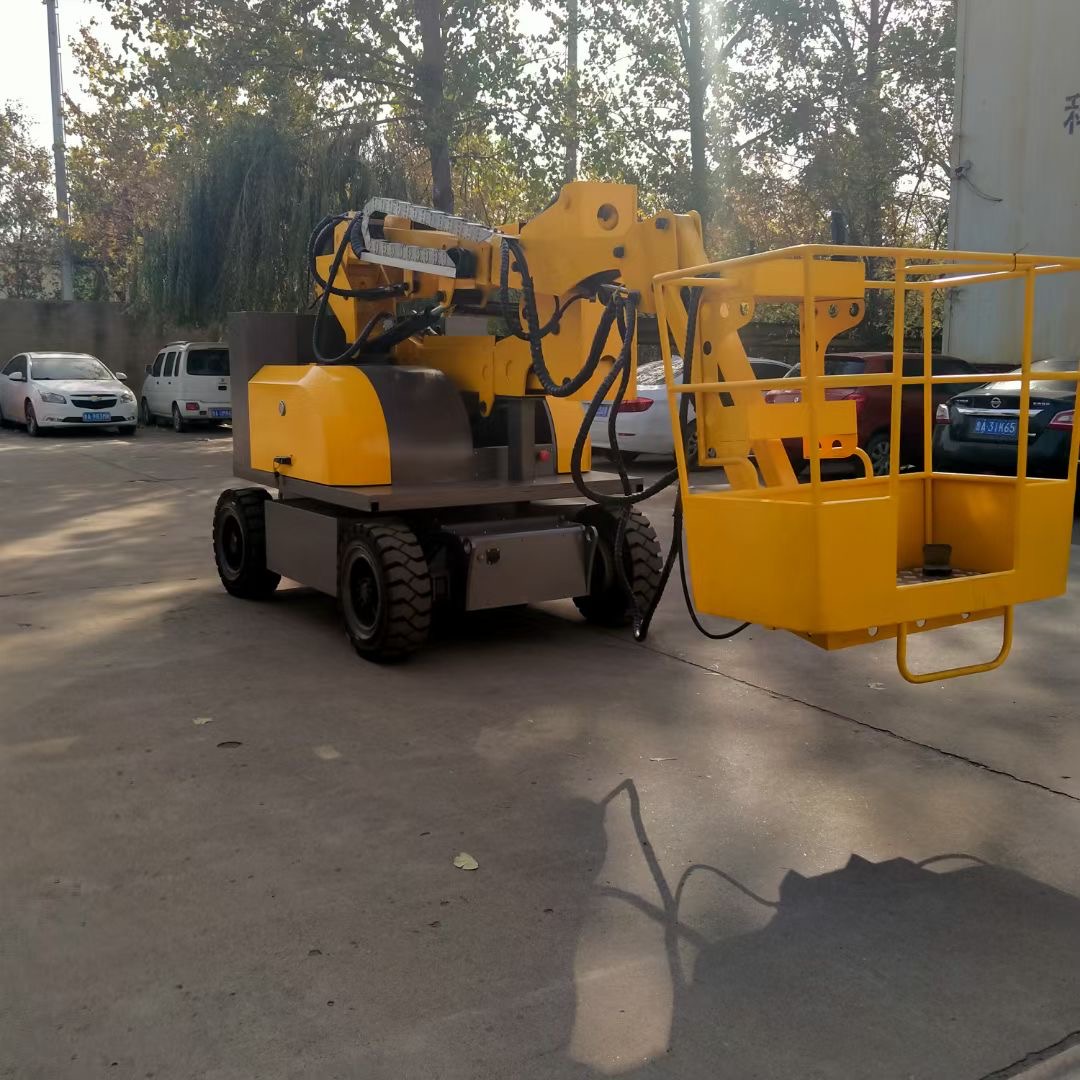

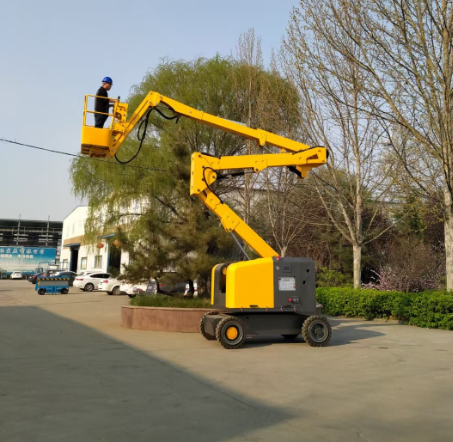

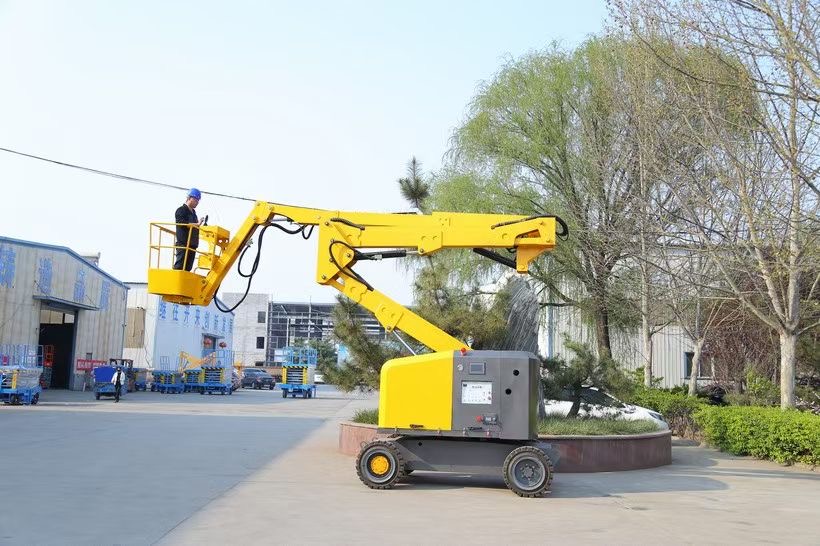

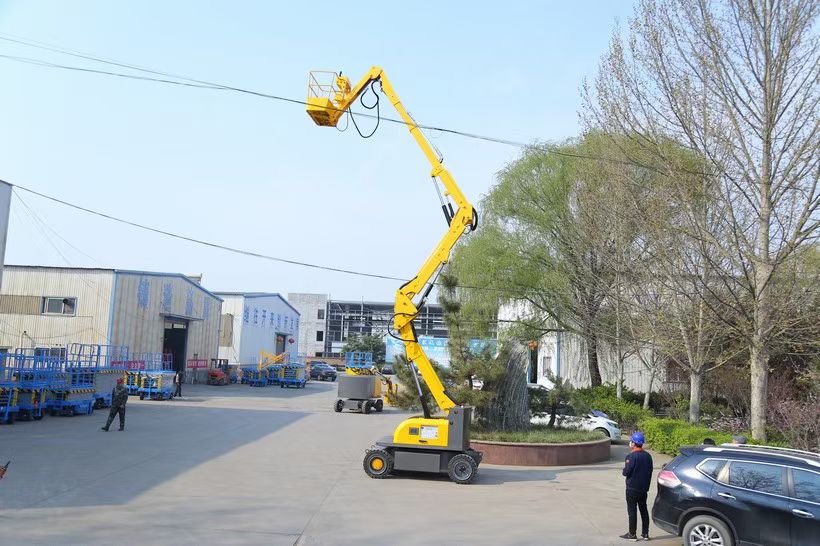

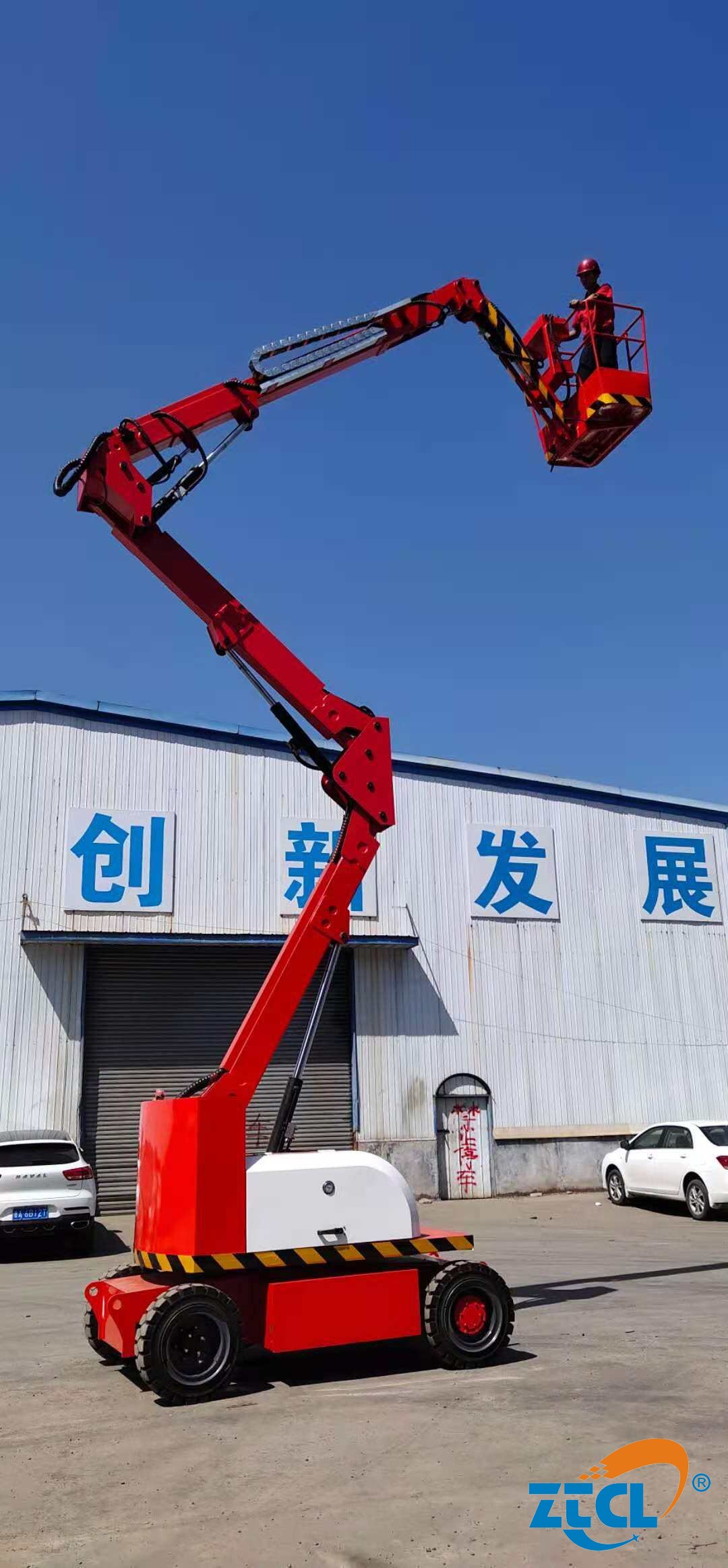

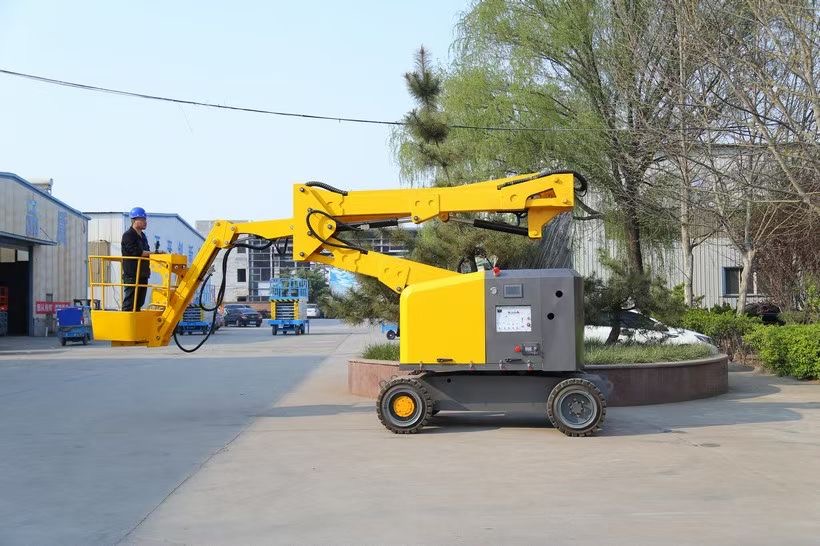

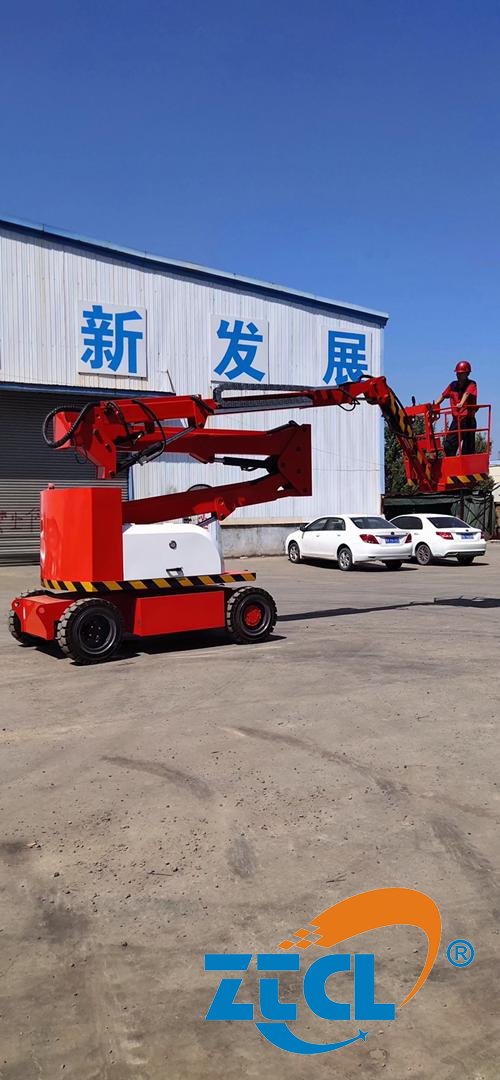

ZTGTZZ1618M Self-propelled boom lift

ZTGTZZ1618M Technical parameter:
Items：parameter
1 Maximum working height：18m
2 Maximum platform height：16m
3 Maximum operating radius：8.8m
4 Maximum crossing height：8.3m
5 Maximum load ：230kg
6 Driving type：Electric drive
7 Battery capacity：2V×24/250AH
8 Driving Motor Power：5.5kw/DC48V
9 The lifting power：4.5kw/DC48V
10 Work table size：1.88*0.78m
11 Maximum external dimension (L× W × H)： 7.1*2.04*2.2m
12 Height of the contracted table from the ground：400mm
13 wheel base：2097mm
14 wheel track：1700mm
15 The number of arms：3 Section (section 3 is the telescopic boom)
16 The deflection of the big arm：≤0.5%
17 Walking speed (traffic condition)：4km/h
18 climbing ability ：25%
19 Drive steering mode：4x2x2
20 minimum turning radius Outer wheel ：4.55m
/inner wheel 1.85m
21 Self-weight ：7300kg
22 The rotation Angle of the turntable：355°discontinuous
23 Platform rotation Angle (optional function)：±80°
24 control voltage ：24v
25 Colour：Yellow/Blue

PRODUCT DETAIL

Technical parameter:

	Items	parameter
1	Maximum working height	18m
2	Maximum platform height	16m
3	Maximum operating radius	8.8m
4	Maximum crossing height	8.3m
5	Maximum Load	230kg
6	Driving type	Electric drive
7	Battery capacity	2V×24/250AH
8	Driving Motor Power	5.5kw/DC48V
9	The lifting power	4.5kw/DC48V
10	Work table size	1.88*0.78m
11	Maximum external dimension (L× W × H)	7.12.042.2m
12	Height of the contracted table from the ground	400mm
13	wheel base	2097mm
14	wheel track	1700mm
15	The number of arms	3 Section (section 3 is the telescopic boom)
16	The deflection of the big arm	≤0.5%
17	Walking speed (traffic condition)	4km/h
18	climbing ability	25%
19	Drive steering mode	4x2x2
20	minimum turning radius	Outer wheel 4.55m /inner wheel 1.85m
21	Self-weight	7300kg
22	The rotation Angle of the turntable	355°discontinuous
23	Platform rotation Angle (optional function)	±80°
24	control voltage	24v
25	Colour	Yellow/Blue

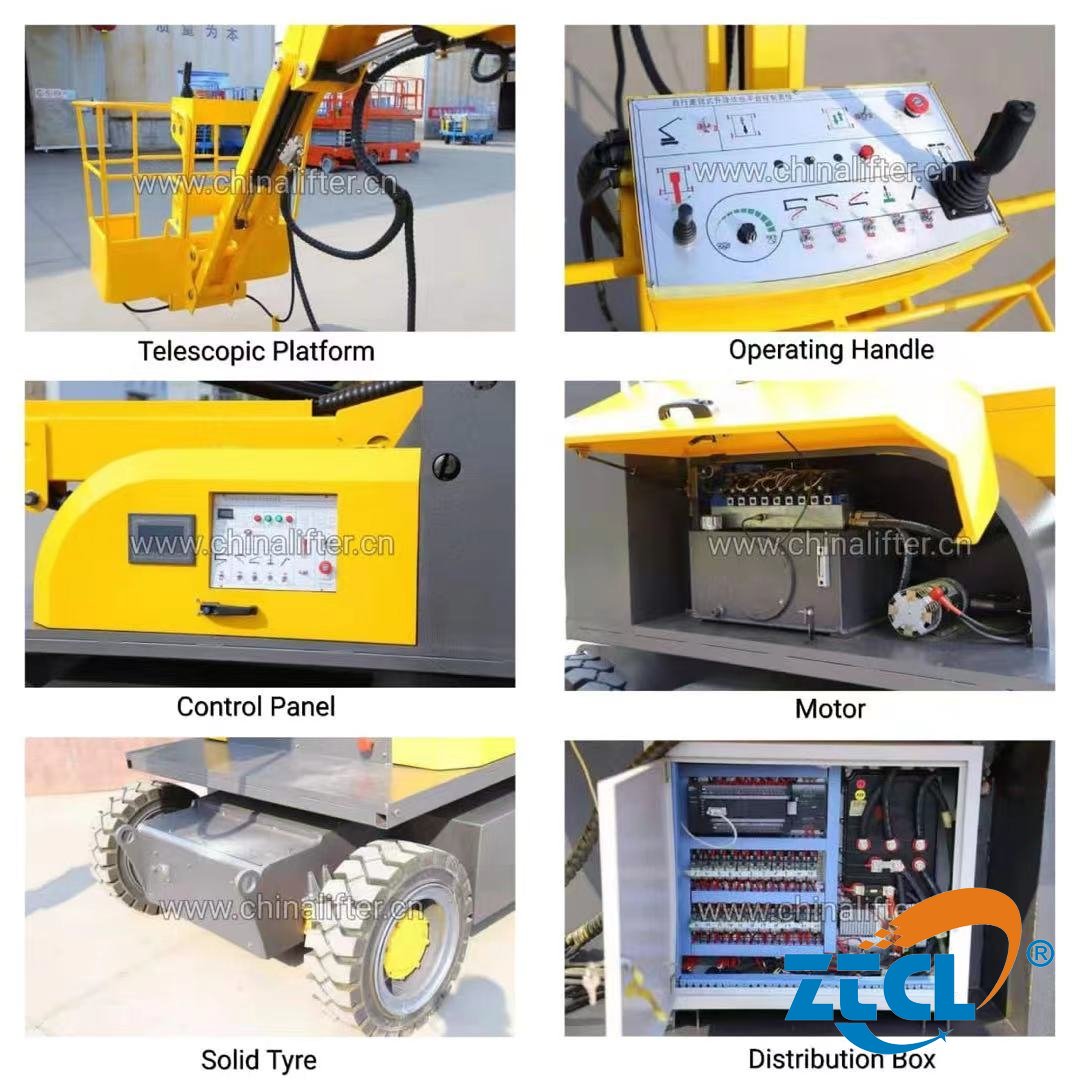

Description of equipment main material selection and design
Our company produces the Articulated boom lift lift operation platform selection of hydraulic pump station is the liaoning anshan power production lift platform of special hydraulic pump station, the biggest advantage of pumping station is of small size, compact structure, easy leakage characteristics, the highest pressure can reach 30 mpa, the service life of the pump can start not less than 500000 times in a row, but also reduce the noise of the hydraulic station to minimum db value (from 1 m in not more than 55 decibels), lifting ability strong, safe and reliable operation is simple, we choose the hydraulic oil cylinder is the domestic famous quality products, the seal and seal all imported from Germany (DE's seal company),The company is the world famous sealing ring manufacturer, can guarantee its products run 300,000 times without oil leakage and damage, the oil cylinder outlet is installed with automatic closure valve, to prevent the closure after the pipe burst suddenly, in addition, all products are equipped with emergency descent device.The series platform for crank arm type lifting operation platform, platform lifting power dc, ac, two phase or three phase power, control switch for safe voltage, table top is equipped with control system, convenient operation, flexible, safe, and guarantee the steady lifting, main body structure of the main frame is used (Shanghai iron and steel

company production of 16 mn good-quality and rectangular pipe welding), the material with high intensity,
