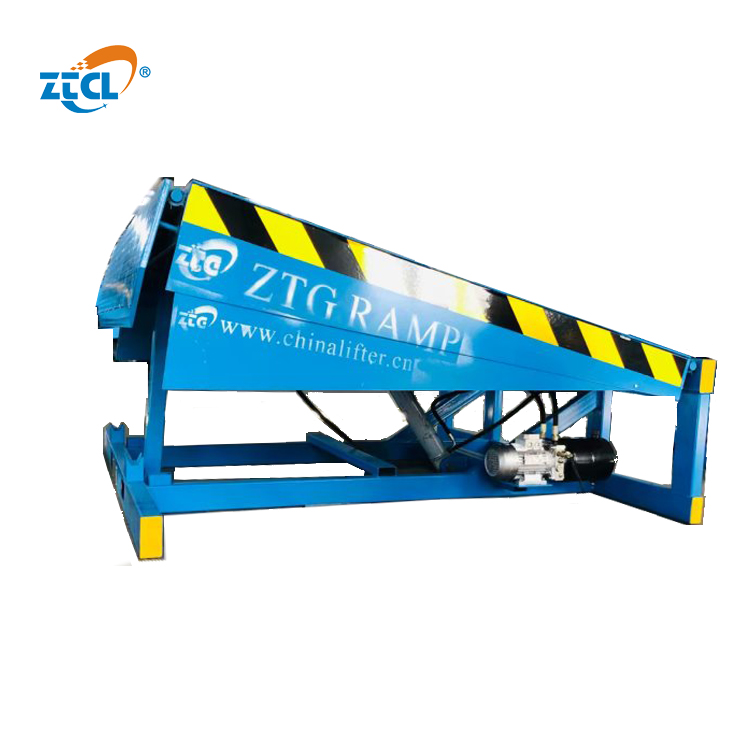

ZTDCQG-10T 2000*2500mm

ZTDCQG-10T Dock Leveler size:2000*2500mm self-height 600mm up +400 down -300 or self-height 500mm up +300 down -200
Main material
1. Main beam: 120 * 60 * 5 rectangular tube (Jigang)
2. Underframe: 100 * 50 * 4 rectangular tube
3. Panel: 6mm checkered plate overlapping tongue plate: 16mm steel plate size 2m * 400mm
4. Large plate oil cylinder: 80 * 1 (Hebei Hengyu)
5. Tongue oil cylinder: 40 * 1 (Hebei Hengyu)
6. Hydraulic pump station: 0.75KW special hydraulic pump station for boarding bridge (Anshan Lisheng) 380V
7. High pressure oil pipe: 2-10-43 double steel wire mesh Hebei Hengshui Rubber General Factory
7. Seals: imported seals are used to ensure excellent sealing performance of the hydraulic system.
8. Electric appliance: Delixi
9. Control mode: inching control release the button and the platform will drop automatically to effectively protect the platform and hydraulic system
10. Color: Blue (electrostatic spraying)

PRODUCT DETAIL

ZTDCQG-10T Dock Leveler size:2000*2500mm ,self-height 600mm , up +400 ,down -300 or self-height 500mm , up +300 ,down -200

Main material

1. Main beam: 120 * 60 * 5 rectangular tube (Jigang)

2. Underframe: 100 * 50 * 4 rectangular tube

3. Panel: 6mm checkered plate, overlapping tongue plate: 16mm steel plate, size 2m * 400mm

4. Large plate oil cylinder: 80 * 1 (Hebei Hengyu)

5. Tongue oil cylinder: 40 * 1 (Hebei Hengyu)

6. Hydraulic pump station: 0.75KW, special hydraulic pump station for boarding bridge (Anshan Lisheng) 380V

7. High pressure oil pipe: 2-10-43 double steel wire mesh, Hebei Hengshui Rubber General Factory

7. Seals: imported seals are used to ensure excellent sealing performance of the hydraulic system.

8. Electric appliance: Delixi

9. Control mode: inching control, release the button, and the platform will drop automatically to effectively protect the platform and hydraulic system

10. Color: Blue (electrostatic spraying)
