6.One person can operate the machine easily
Product Main Configuration :
1. Italian Hydraulic brand hydraulic unit, which is small volume, compact structure, lower
noise, safe and reliable.The highest pressure can reach 30 Mpa, The service life of pump can reach about 500000 times when the pump continuous works.
2. Domestic famous hydro-cylinder , sealing elements and seal ring are imported from Germany ( Dichtomatik company )can ensure high sealing performance. The oil outlet of Oil cylinder is installed automatic shutoff valve have to be automatic shut-off which can perform closure when the oil tube suddenly burst.
3. The major structure, main frame is welded by high quality rectangular tube which is manufactured by Shanghai steel company. The material is high strength, high resistance to bending and corrosion resisting
4. Compact main body, easy control and flexible movement.
5. In the rotating element, it's equipped with composite bearing and oil cup, to make sure it can go up and down stably and no noise interference.
6. Hydraulic oil: Anti wear hydraulic oil
7. Hydromantic oil pipe feature: inner two-double pressure proof steel mesh, which increase resistance to pressure and safety factor.
8. Chargeable battery provides the power to move around and also provides the power to lift the platform,without external power supply.

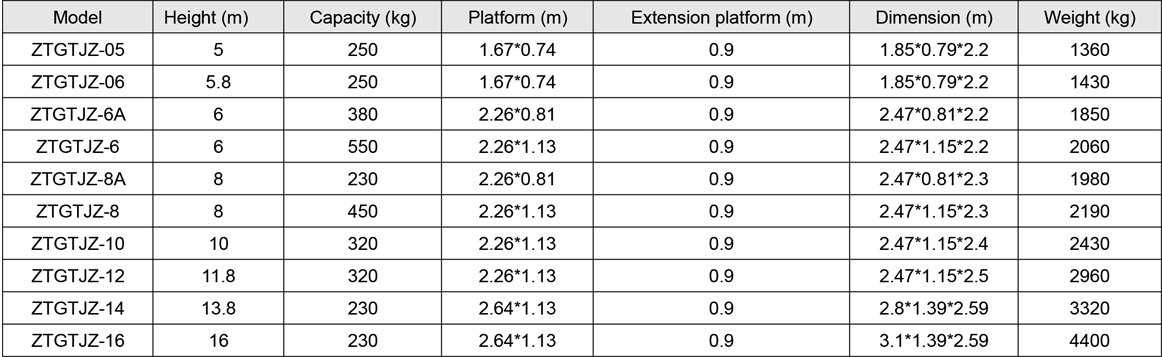

Product Details :
